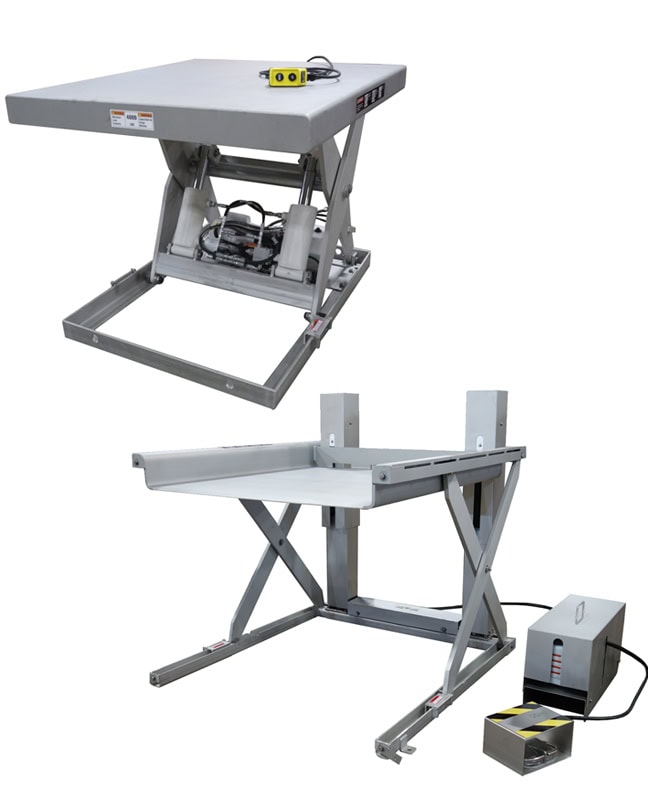

Standard and Custom Lifts
From standard models to custom solutions, Mepaco lifts improve ergonomics, safety, sanitation, and material flow.
Contact Us

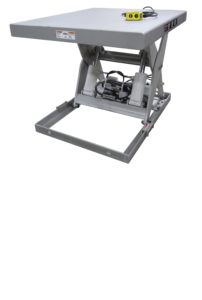

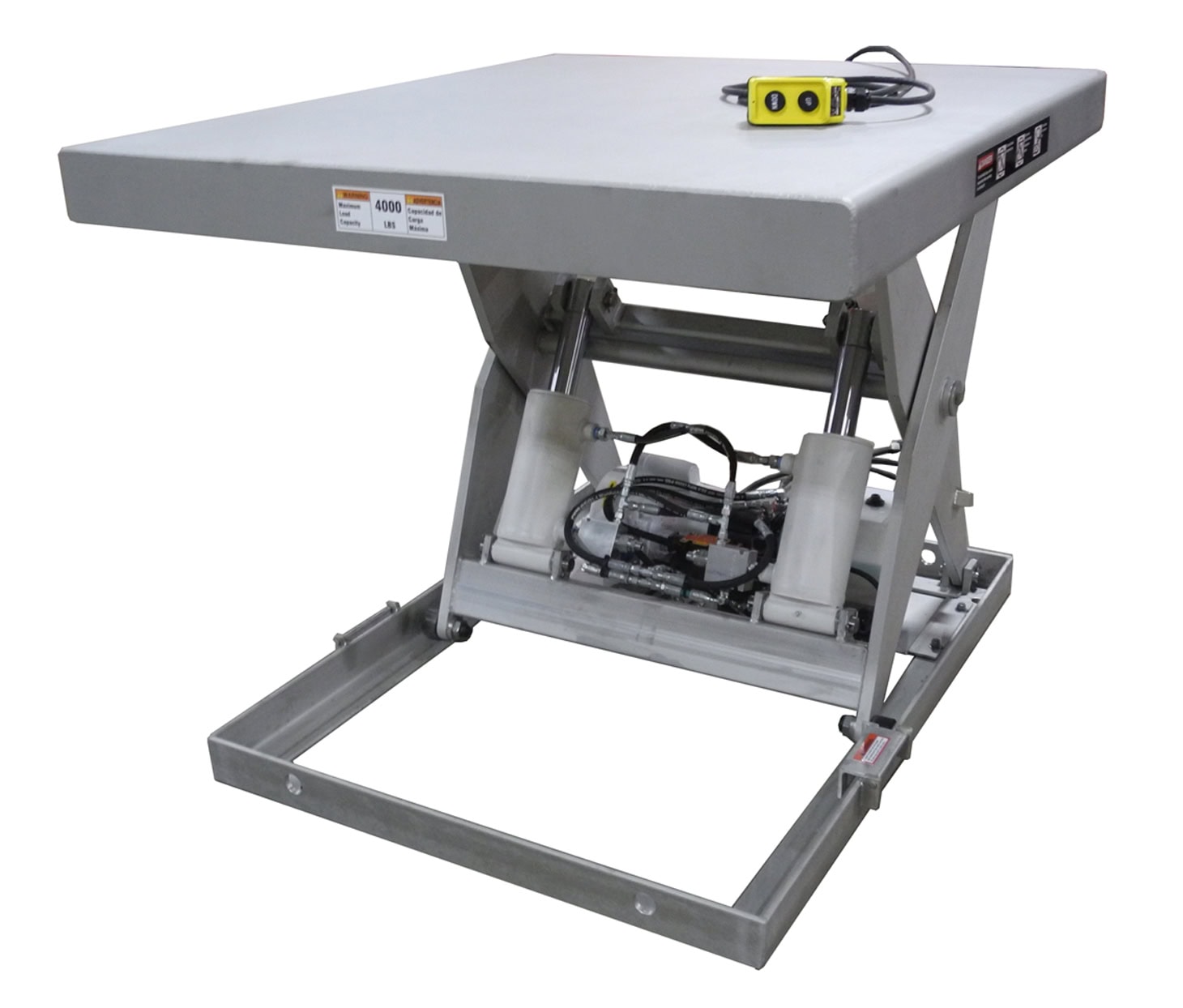

Stainless Lift EZ4000
The EZ400 is designed with a flat platform, with a rotating top option, and has a working capacity of 4000 lbs.
- Heavy-Duty T304 Stainless Steel Construction
- Working Capacity: 4,000-Pounds
- Platform Size: 48″ x 42″
- Raised Platform Height: 36″ (Lowered to 9″)
- Relief Valve to Prevent Overloading
- Control Valve for Controlled Descent in Case of Electrical Failure
- Self-Contained Power Unit
- 115 Volt Single Phase Hydraulic Drive W/Power Unit (Integrally Mounted)
- Safety Up-Down Pendant Control
- Dual, Low Pressure Hydraulic Cylinders (SST Powder Coated)
- Pickle Passivated Finish
- USDA Approved

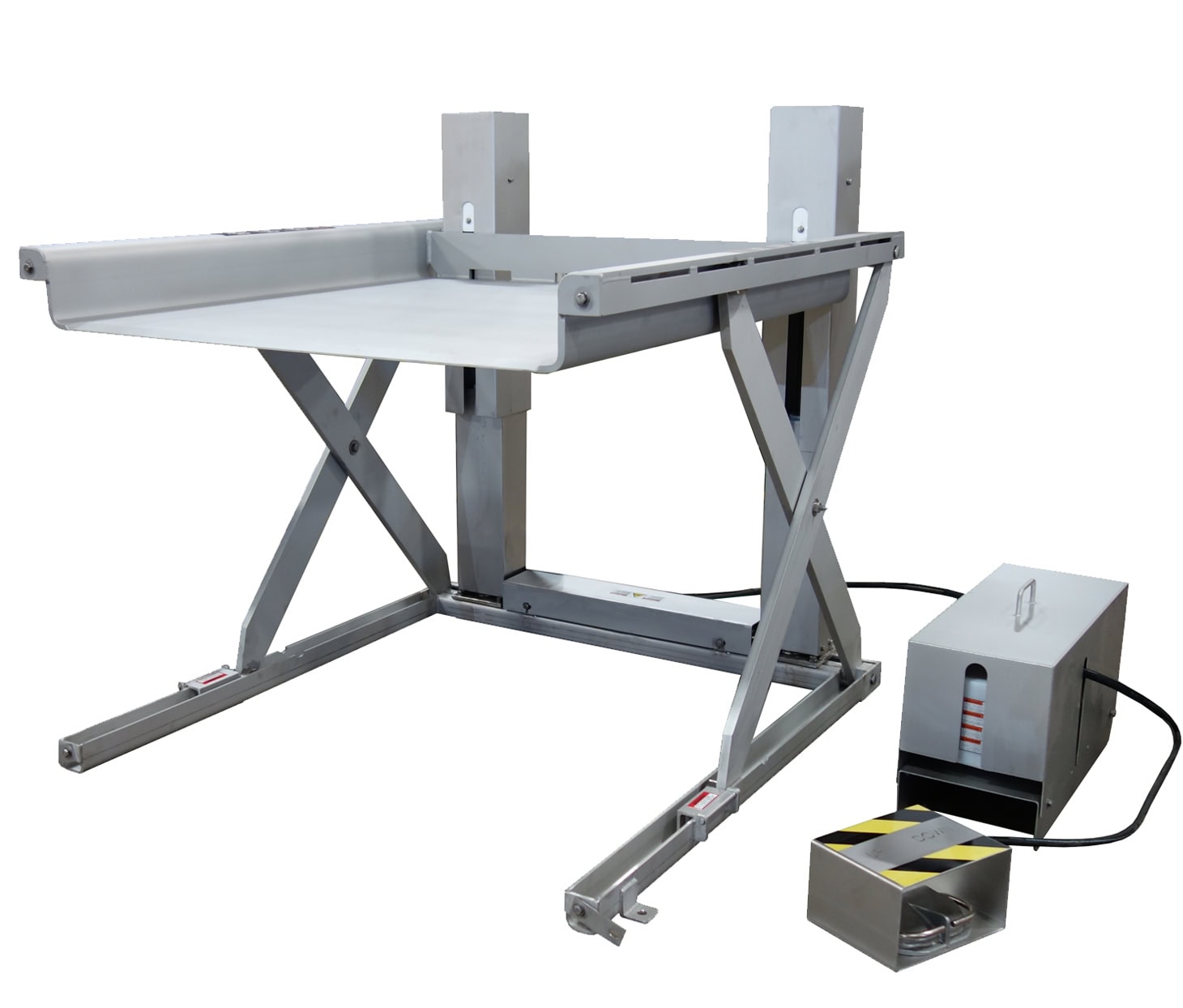

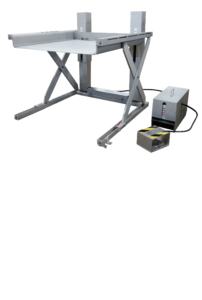

Stainless Lift EZL2500
The EZL2500 is designed with platform sides, and has a working capacity of 2500 lbs.
- Heavy-Duty T304 S.S. Construction
- Working Capacity: 2,500-Pounds
- Platform Size: 48″ x 42″
- Raised Platform Height: 37″ (43″ W/Side Rails)
- Beveled Low-Profile Platform
- Relief Valve to Prevent Overloading
- Control Valve for Controlled Descent in Case of Electrical Failure
- Self-Contained Power Unit
- 115 Volt Single Phase Hydraulic Drive W/Power Unit (Remotely Mounted)
- Safety Up-Down Foot Pedal Control
- Narrow 2.5″ Wide Sides for Easy Loading/Unloading
- Totally Enclosed Dual (Synchronized) Hydraulic Lift Cylinders
- Pickle Passivated Finish
- USDA Approved

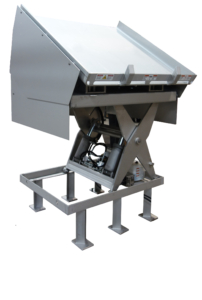

Custom Lifts
Mepaco custom lifts are application‑engineered to meet specific handling, sanitation, and ergonomic requirements.

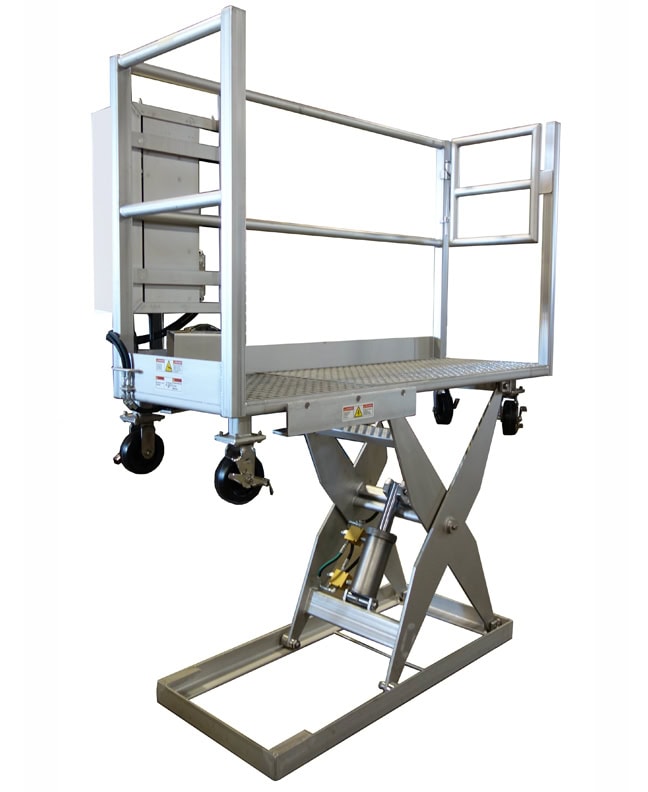

- Portability
- Rotating Top / Rotary Platform

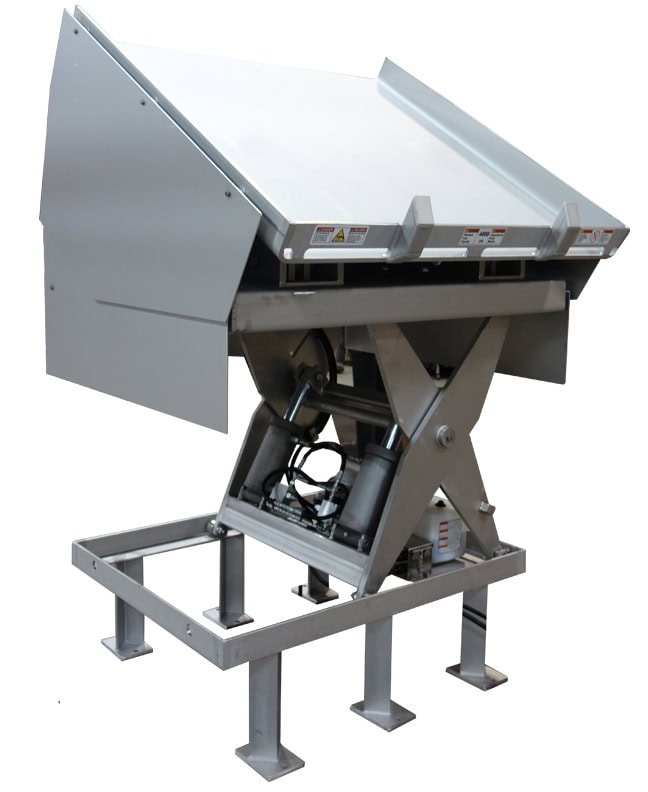

- Tilting Platforms
- Platform Styles & Sizes
- Capacity & Lift Height Variations
- Control Options
- Power Unit Configurations
- Sanitary Finishes
Frequently Asked Questions
4000 lbs.
Check the cam followers, grease zerks and hydraulics. See manual for maintenance protocol.
The lift loads at 9″.
The EZ4000 has an optional rotating top and tilting top. It can be counted on legs/risers. Customized load, height are available. Stainless steel components (Cylinders, cam followers) are also an option.
Optional safety locks stop the lift and hold the lift in a raised position for safe maintenance.
Standard controls include a hand pendant with option for foot pedal and control button push button station locally mounted (required for 40 volt).
2500 lbs.
Standard single phase 115volt or optional 3 phase voltage.
Foot pedal control; hand pendant or locally mounted push button station are options.
The EZL2500 is pre-engineered and will be pulled from stock or quickly fabricated.
The material is T304 stainless steel construction with a pickle passivated finish.
The EZL2500 has a floor level loading that can be loaded by hand truck or fork truck.
Custom higher capacity units, 3 phase power, roll through units (no back) and side guarding.
Optional locks hold the lift in a raised position for safe maintenance.
