ASME (American Society of Mechanical Engineers) is a leading developer of codes and standards in the mechanical engineering community. ASME code section VIII details mandatory rules regarding vessel design, including engineering, manufacturing, and testing of pressure vessels. These standards enhance public safety and health as well as promote quality and innovation. Here are the main parameters outlining ASME construction of pressure vessels with supporting ASME testing requirements.
Construction
Parameters such as wall thickness, material, and flange rating are determined by the application, including pressure, temperature, corrosion allowance, and fluid flow. These conditions are calculated and reviewed/approved by the ASME inspector when required per code. Stainless, Hastelloy, AL6XN, duplex, and Inconel materials are ASME-approved materials for pressure vessel construction in the pharmaceutical, life sciences, and health-related industries, of which Apache is qualified to fabricate.
Welding

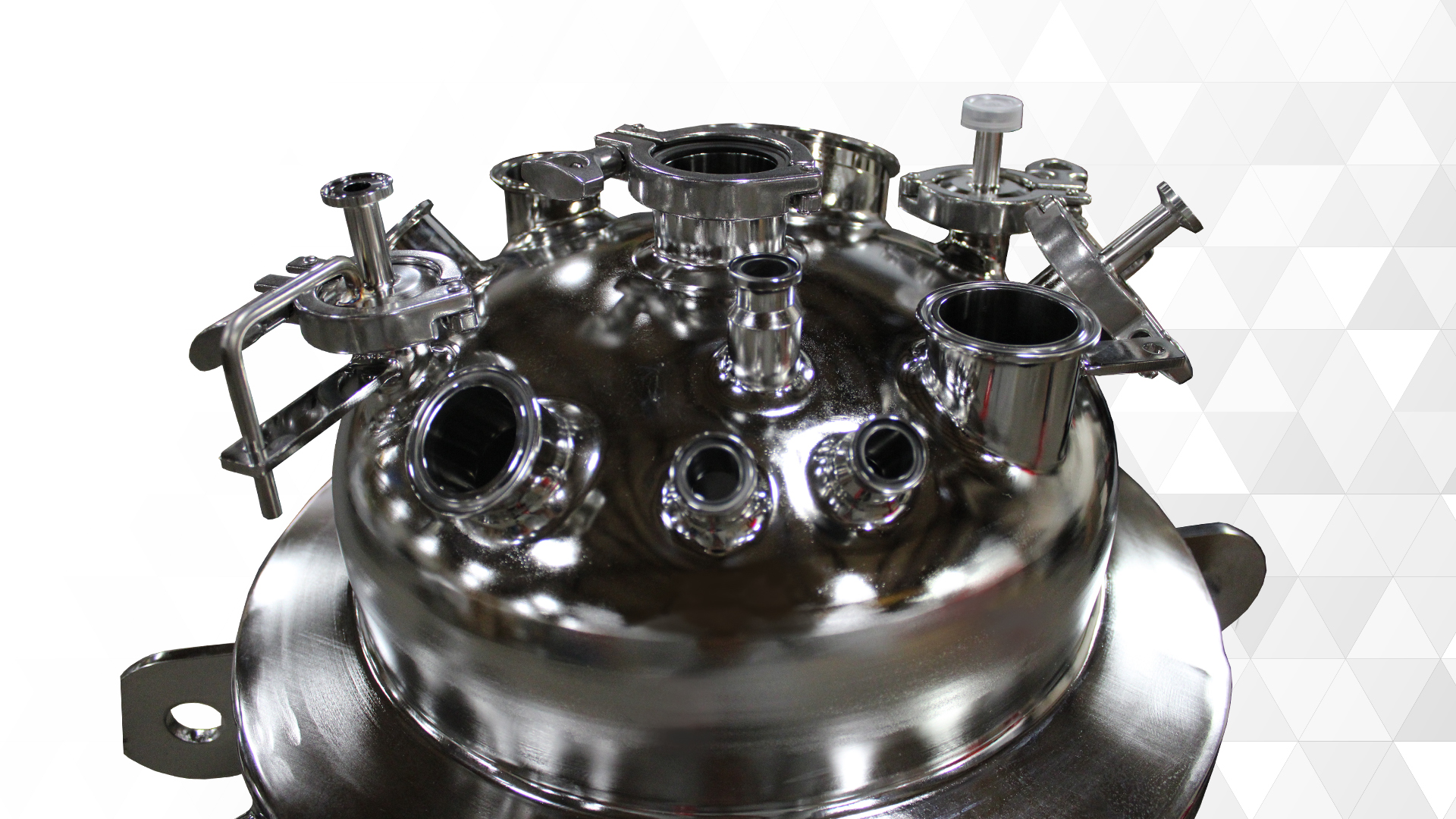

ASME standards also define the quality, type, and finishing of the welds. Head styles (ASME F&D, 80:10, 2:1 Elliptical), seams, nozzles, manways, and other components are designed per ASME Code. Applicable ASME Code welding procedures must be followed using certified ASME welders to maintain the structural integrity of an ASME pressure vessel. Welders must be certified to a qualified weld specification per ASME code guidelines.
Safety Components
Gauges, valves, pressure outlets, and drainage are required safety components in ASME design pressure vessels. The proper selection of components and design is critically important to the safety and performance of the ASME vessel. The selection of safety components needs to be evaluated closely to define the required scope of supply.
Finishing
There is another ASME specification to ensure the quality and safety of parts used in pharmaceutical, bio-processing, and other industries requiring a hygienic vessel, called ASMP-BPE. BPE (Bio Processing Equipment Standard) specifies the surface finishes RA (roughness average) requirements and pickle passivation and electropolishing requirements.
Tests & Certification
There are significant testing, certifications, and documentation requirements for ASME compliance and satisfying the numerous customer requirements. Many require ASME inspection as well as a TOP (turnover packet). Some ASME testing and certification requirements include pneumatic, hydrostatic, liquid penetrant, saline, riboflavin, CIP coverage, material, base metal thickness, material trace, welder trace, Ferroxyl, PMI (Positive Material Identification) radiography, and UT.
Apache has been ASME-certified for over 40 years. In addition to ASME, Apache is accredited in many other global standards. By setting parameters for quality and compliance, we offer greater value for our custom stainless ASME tanks and vessels.
